Benchmarking transformation methods

Import packages

import numpy as np
import pandas as pd
import xarray as xr
import xgcm
import xwmt
import xbudget
import xhistogram
from xhistogram.xarray import histogram
import os

# Optional (loading to memory and plotting)
from dask.diagnostics import ProgressBar
import matplotlib.pyplot as plt
import calendar

print(
    'numpy version',np.__version__, '\npandas version',pd.__version__,
    '\nxarray version',xr.__version__, '\nxhistogram version',xhistogram.__version__, '\nxgcm version',xgcm.__version__,
    '\nxwmt version',xwmt.__version__, '\nxbudget version',xbudget.__version__,)

numpy version 2.4.2
pandas version 3.0.1
xarray version 2026.2.0
xhistogram version 0.3.2
xgcm version 0.9.0
xwmt version 0.2.0
xbudget version 0.6.2

Loading a dataset

Update rootdir with your own dataset’s path. All relevant variables will be loaded into ds and the (static) grid data will be loaded into a separate dataset. Note that the time period (tprd) is '201001-201412' such that only the last five years of the CM4 historical run are used. In order to include more years, you can use wildcard * for tprd instead.

rootdir = '/data_cmip6/CMIP6'
activity_id = 'CMIP'
institution_id = 'NOAA-GFDL'
source_id = 'GFDL-CM4'
experiment_id = 'historical'
member_id = 'r1i1p1f1'
table_id = 'Omon'
grid_label = 'gn'
version = 'v20180701'
tprd = '201001-201412'
#tprd = '*'

ncdir = os.path.join(rootdir,activity_id,institution_id,source_id,experiment_id,member_id,table_id)

variables = ['tos','sos','hfds','wfo','sfdsi']
chunks = {'time':1, 'x':-1, 'y':-1, 'xh':-1, 'yh':-1}

ds = xr.Dataset()
for var in variables:
    filepath = os.path.join(ncdir,var,grid_label,version)
    filename = '_'.join([var,table_id,source_id,experiment_id,member_id,grid_label,tprd])+'.nc'

    if os.path.isdir(filepath):
        print('Loading',filename)
        time_coder = xr.coders.CFDatetimeCoder(use_cftime=True)
        ds[var] = xr.open_mfdataset(filepath+'/'+filename, decode_times=time_coder, chunks=chunks)[var]
    else:
        print('Path for',var,'does not exist. Skipping.')

Loading tos_Omon_GFDL-CM4_historical_r1i1p1f1_gn_201001-201412.nc
Loading sos_Omon_GFDL-CM4_historical_r1i1p1f1_gn_201001-201412.nc
Loading hfds_Omon_GFDL-CM4_historical_r1i1p1f1_gn_201001-201412.nc
Loading wfo_Omon_GFDL-CM4_historical_r1i1p1f1_gn_201001-201412.nc
Path for sfdsi does not exist. Skipping.

grid = []
for var in ['areacello','deptho','basin']:
    filepath = os.path.join(ncdir.replace(table_id,'Ofx'),var,grid_label,version)
    filename = '_'.join([var,'Ofx',source_id,experiment_id,member_id,grid_label])+'.nc'

    if os.path.isdir(filepath):
        print('Loading',filename)
        time_coder = xr.coders.CFDatetimeCoder(use_cftime=True)
        grid.append(xr.open_mfdataset(filepath+'/'+filename, decode_times=time_coder, chunks=chunks))
    else:
        print('Path for',var,'does not exist. Skipping.')

Loading areacello_Ofx_GFDL-CM4_historical_r1i1p1f1_gn.nc
Loading deptho_Ofx_GFDL-CM4_historical_r1i1p1f1_gn.nc
Loading basin_Ofx_GFDL-CM4_historical_r1i1p1f1_gn.nc

ds = xr.merge([ds, xr.merge(grid[1:])])

# Area needs to be loaded seperately after renaming MOM6-specific dimension names (xh, yh)
ds['areacello'] = grid[0].areacello.rename({'xh': 'x', 'yh': 'y'})

/vftmp/Henri.Drake/pid645819/ipykernel_3129001/3363446932.py:1: FutureWarning: In a future version of xarray the default value for compat will change from compat='no_conflicts' to compat='override'. This is likely to lead to different results when combining overlapping variables with the same name. To opt in to new defaults and get rid of these warnings now use `set_options(use_new_combine_kwarg_defaults=True) or set compat explicitly.
  ds = xr.merge([ds, xr.merge(grid[1:])])
/vftmp/Henri.Drake/pid645819/ipykernel_3129001/3363446932.py:1: FutureWarning: In a future version of xarray the default value for compat will change from compat='no_conflicts' to compat='override'. This is likely to lead to different results when combining overlapping variables with the same name. To opt in to new defaults and get rid of these warnings now use `set_options(use_new_combine_kwarg_defaults=True) or set compat explicitly.
  ds = xr.merge([ds, xr.merge(grid[1:])])
/vftmp/Henri.Drake/pid645819/ipykernel_3129001/3363446932.py:1: FutureWarning: In a future version of xarray the default value for compat will change from compat='no_conflicts' to compat='override'. This is likely to lead to different results when combining overlapping variables with the same name. To opt in to new defaults and get rid of these warnings now use `set_options(use_new_combine_kwarg_defaults=True) or set compat explicitly.
  ds = xr.merge([ds, xr.merge(grid[1:])])
/vftmp/Henri.Drake/pid645819/ipykernel_3129001/3363446932.py:1: FutureWarning: In a future version of xarray the default value for compat will change from compat='no_conflicts' to compat='override'. This is likely to lead to different results when combining overlapping variables with the same name. To opt in to new defaults and get rid of these warnings now use `set_options(use_new_combine_kwarg_defaults=True) or set compat explicitly.
  ds = xr.merge([ds, xr.merge(grid[1:])])

# Add core coordinates of ocean_grid to ds
ds = ds.assign_coords({
    "areacello": xr.DataArray(ds["areacello"].values, dims=('y', 'x',)), # Required for area-integration
    "lon":       xr.DataArray(ds["lon"].values, dims=('y', 'x',)), # Required for calculating density if not already provided!
    "lat":       xr.DataArray(ds["lat"].values, dims=('y', 'x',)), # Required for calculating density if not already provided!
})

# xgcm grid for dataset
coords = {
    'X': {'center': 'x',},
    'Y': {'center': 'y',},
}
metrics = {
    ('X','Y'): "areacello", # Required for area-integration
}
grid = xgcm.Grid(ds, coords=coords, metrics=metrics, boundary={'X':'periodic', 'Y':'periodic'}, autoparse_metadata=False)

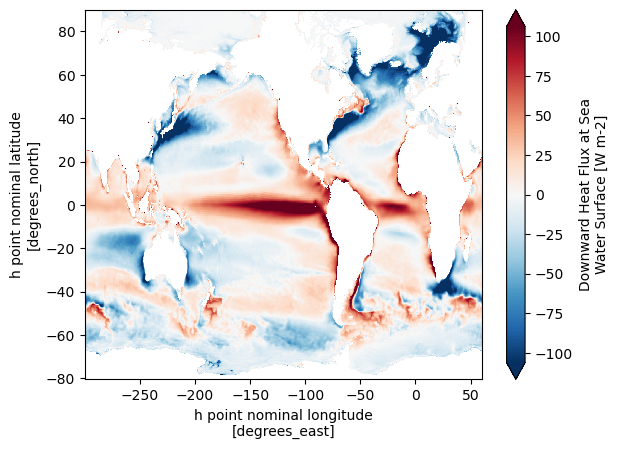

grid._ds['hfds'].mean('time').plot(robust=True)

<matplotlib.collections.QuadMesh at 0x14b23b7fac90>

budgets_dict = {
    "mass": {},
    "heat": {"surface_lambda": "tos"},
    "salt": {"surface_lambda": "sos"}
}

swmt = xwmt.WaterMassTransformations(grid, budgets_dict)

bins = xr.DataArray(np.arange(-4., 50., 1.), dims=('tos_bin'))

Benchmarking integrate_transformations

%%time
tmp_xhistogram_global = histogram(
    swmt.grid._ds['tos'].expand_dims('z_l'),
    bins=[bins.values],
    dim=['x', 'y', 'z_l'],
    weights=swmt.grid._ds['hfds'].fillna(0.).expand_dims('z_l'),
).mean('time')
tmp_xhistogram_global.load();
;

CPU times: user 4.26 s, sys: 301 ms, total: 4.56 s
Wall time: 2.43 s

%%time
tmp_xgcm = swmt.grid.transform(
    swmt.grid._ds['hfds'].fillna(0.).expand_dims('z_l'),
    "Z",
    target=bins,
    target_data=swmt.grid._ds['tos'].expand_dims({'z_i': xr.DataArray([0,1], dims=('z_i',))}),
    method="conservative",

).fillna(0.).sum(['x','y']).mean('time')
tmp_xgcm.load();
;

CPU times: user 42.5 s, sys: 1min 32s, total: 2min 15s
Wall time: 13.4 s

%%time
tmp_xhistogram_sumlocal = histogram(
    swmt.grid._ds['tos'].expand_dims('z_l'),
    bins=[bins.values],
    dim=['z_l'],
    weights=swmt.grid._ds['hfds'].fillna(0.).expand_dims('z_l'),
).sum(['x', 'y']).mean('time')
tmp_xhistogram_sumlocal.load();
;

CPU times: user 39 s, sys: 3min 6s, total: 3min 45s
Wall time: 26.9 s

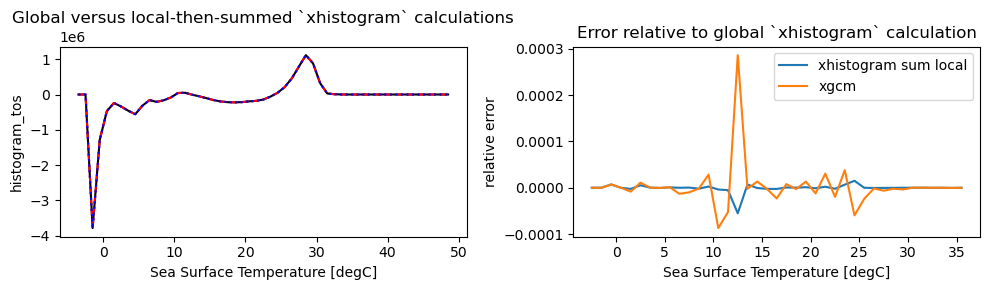

plt.figure(figsize=(10, 3))
plt.subplot(1,2,1)
tmp_xhistogram_global.plot(label="xhistogram", color="k")
tmp_xgcm.plot(label="xgcm", linestyle="--", color="r")
tmp_xhistogram_sumlocal.plot(label="xhistogram", linestyle=":", color="b")
plt.title("Global versus local-then-summed `xhistogram` calculations")

plt.subplot(1,2,2)
((tmp_xhistogram_global - tmp_xhistogram_sumlocal.values)/tmp_xhistogram_global).plot(label="xhistogram sum local")
((tmp_xhistogram_global - tmp_xgcm.values)/tmp_xhistogram_global).plot(label="xgcm")
plt.title("Error relative to global `xhistogram` calculation")
plt.ylabel("relative error")
plt.legend()
plt.tight_layout()

print()
print(
    "Global sum to assess heat conservation:\n"
    "- Raw surface flux:", grid._ds['hfds'].mean('time').sum().values,"\n",
    "- Global xhistogram:", tmp_xhistogram_global.sum().values,"\n",
    "- Local xgcm", tmp_xgcm.sum().values,"\n",
    "- Local xhistogram", tmp_xhistogram_sumlocal.sum().values
)

Global sum to assess heat conservation:
- Raw surface flux: -5.8760075e+06
 - Global xhistogram: -5.876008e+06
 - Local xgcm -5.8759685e+06
 - Local xhistogram -5.8759975e+06

Benchmarking map_transformations for a single slice

tos_lev = 12.5

%%time
tmp_xgcm_isosurface = swmt.grid.transform(
    swmt.grid._ds['hfds'].fillna(0.).expand_dims({'z_l': xr.DataArray([0.5], dims=('z_l',))}),
    "Z",
    target=bins,
    target_data=swmt.grid._ds['tos'].expand_dims({'z_i': xr.DataArray([0,1], dims=('z_i',))}),
    method="conservative"
).sel({"tos_bin":tos_lev}, method="nearest").fillna(0.).mean('time')
tmp_xgcm_isosurface.load();

CPU times: user 14.1 s, sys: 22.3 s, total: 36.3 s
Wall time: 11.2 s

%%time
tmp_xhistogram_isosurface = histogram(
    swmt.grid._ds['tos'].expand_dims({'z_l': xr.DataArray([0.5], dims=('z_l',))}),
    bins=[bins.values],
    dim=['z_l'],
    weights=swmt.grid._ds['hfds'].fillna(0.).expand_dims({'z_l': xr.DataArray([0.5], dims=('z_l',))}),
).sel({"tos_bin":tos_lev}, method="nearest").mean('time')
tmp_xhistogram_isosurface.load();

CPU times: user 26.9 s, sys: 2min 27s, total: 2min 54s
Wall time: 17.2 s

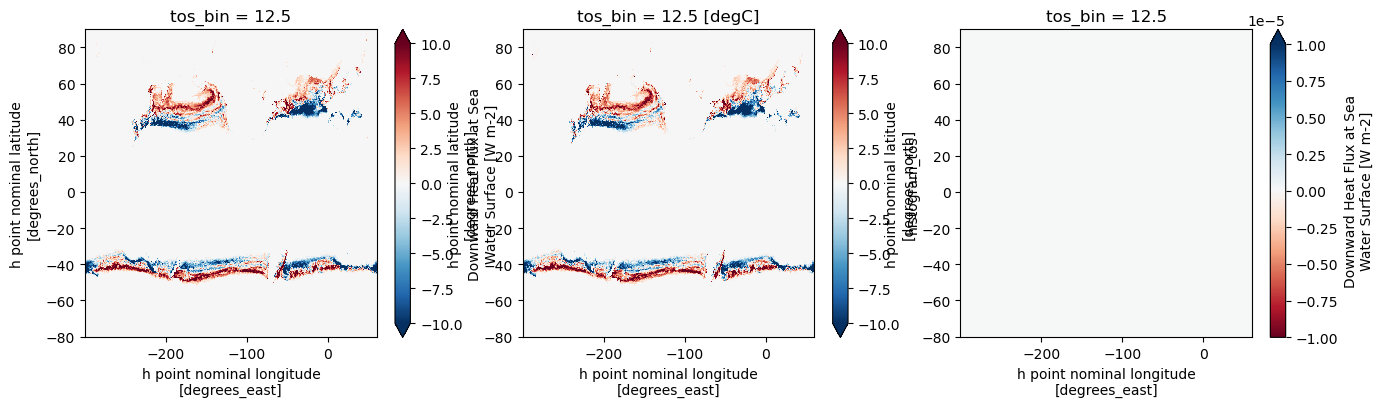

plt.figure(figsize=(16,4))
plt.subplot(1,3,1)
tmp_xgcm_isosurface.plot(vmin=-10, vmax=10, cmap="RdBu_r")
plt.subplot(1,3,2)
tmp_xhistogram_isosurface.plot(vmin=-10, vmax=10, cmap="RdBu_r")
plt.subplot(1,3,3)
(tmp_xgcm_isosurface - tmp_xhistogram_isosurface.values).plot(vmin=-1.e-5, vmax=1.e-5, cmap="RdBu");

Benchmarking map_transformations for full 3D fields

%%time
tmp_xgcm_isosurfaces = swmt.grid.transform(
    swmt.grid._ds['hfds'].fillna(0.).expand_dims('z_l'),
    "Z",
    target=bins,
    target_data=swmt.grid._ds['tos'].expand_dims({'z_i': xr.DataArray([0,1], dims=('z_i',))}),
    method="conservative"
).fillna(0.).mean('time')
tmp_xgcm_isosurfaces.load();
;

CPU times: user 1min 14s, sys: 3min, total: 4min 15s
Wall time: 43.9 s

%%time
tmp_xhistogram_isosurfaces = histogram(
    swmt.grid._ds['tos'].expand_dims('z_l'),
    bins=[bins.values],
    dim=['z_l'],
    weights=swmt.grid._ds['hfds'].fillna(0.).expand_dims('z_l'),
).mean('time')
tmp_xhistogram_isosurfaces.load();
;

CPU times: user 1min 11s, sys: 4min 58s, total: 6min 10s
Wall time: 51.4 s

There are some very minor discrepancies between the two regridding methods. They are not noticeable by eye, but the coordinate transformations differ quantitatively in a handful of cells. I do not yet understand why that would be.

Tmax = (tmp_xhistogram_isosurfaces!=tmp_xgcm_isosurfaces).sum(['x','y']).idxmax()

(tmp_xhistogram_isosurfaces!=tmp_xgcm_isosurfaces).sum(['x','y'])

<xarray.DataArray (tos_bin: 53)> Size: 424B
array([0, 0, 1, 0, 0, 1, 1, 0, 1, 1, 2, 5, 0, 2, 2, 1, 2, 1, 2, 0, 2, 1,
       1, 1, 2, 3, 3, 4, 3, 4, 3, 8, 3, 4, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
       0, 0, 0, 0, 0, 0, 0, 0, 0])
Coordinates:
  * tos_bin  (tos_bin) float64 424B -3.5 -2.5 -1.5 -0.5 ... 45.5 46.5 47.5 48.5
Attributes:
    long_name:      Downward Heat Flux at Sea Water Surface
    units:          W m-2
    cell_methods:   area: mean where sea time: mean
    cell_measures:  area: areacello
    standard_name:  surface_downward_heat_flux_in_sea_water
    original_name:  hfds

xarray.DataArray

• tos_bin: 53

• 0 0 1 0 0 1 1 0 1 1 2 5 0 2 2 1 2 ... 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

  array([0, 0, 1, 0, 0, 1, 1, 0, 1, 1, 2, 5, 0, 2, 2, 1, 2, 1, 2, 0, 2, 1,
         1, 1, 2, 3, 3, 4, 3, 4, 3, 8, 3, 4, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
         0, 0, 0, 0, 0, 0, 0, 0, 0])

• Coordinates: (1)
  • tos_bin
    (tos_bin)
    float64
    -3.5 -2.5 -1.5 ... 46.5 47.5 48.5

    long_name :

    Sea Surface Temperature

    units :

    degC

    cell_methods :

    area: mean where sea time: mean

    cell_measures :

    area: areacello

    standard_name :

    sea_surface_temperature

    original_name :

    tos

    array([-3.5, -2.5, -1.5, -0.5,  0.5,  1.5,  2.5,  3.5,  4.5,  5.5,  6.5,  7.5,
            8.5,  9.5, 10.5, 11.5, 12.5, 13.5, 14.5, 15.5, 16.5, 17.5, 18.5, 19.5,
           20.5, 21.5, 22.5, 23.5, 24.5, 25.5, 26.5, 27.5, 28.5, 29.5, 30.5, 31.5,
           32.5, 33.5, 34.5, 35.5, 36.5, 37.5, 38.5, 39.5, 40.5, 41.5, 42.5, 43.5,
           44.5, 45.5, 46.5, 47.5, 48.5])

• Attributes: (6)

  long_name :

  Downward Heat Flux at Sea Water Surface

  units :

  W m-2

  cell_methods :

  area: mean where sea time: mean

  cell_measures :

  area: areacello

  standard_name :

  surface_downward_heat_flux_in_sea_water

  original_name :

  hfds

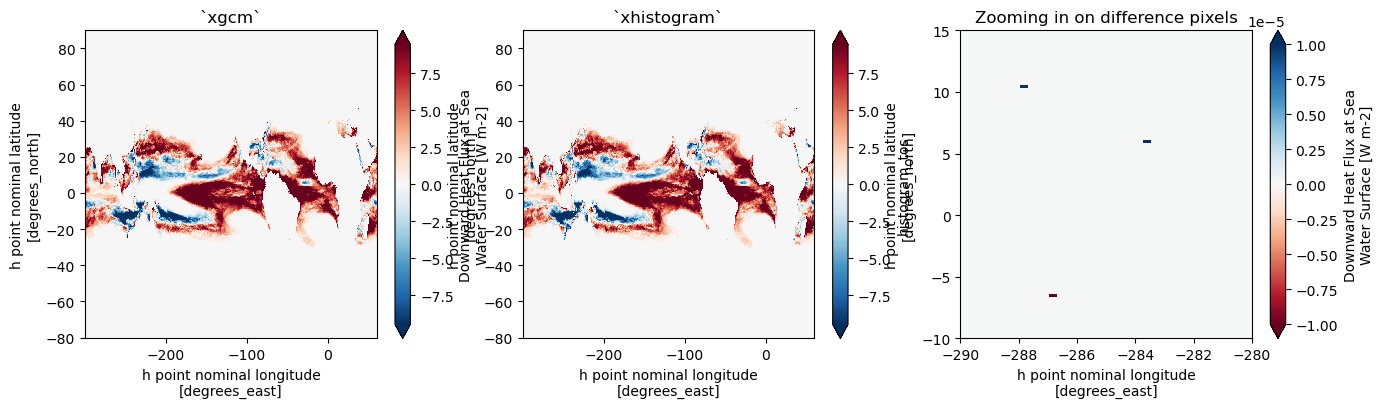

plt.figure(figsize=(16,4))
plt.subplot(1,3,1)
tmp_xgcm_isosurfaces.sel(tos_bin=Tmax).plot(robust=True)
plt.title("`xgcm`")
plt.subplot(1,3,2)
tmp_xhistogram_isosurfaces.sel(tos_bin=Tmax).plot(robust=True)
plt.title("`xhistogram`")
plt.subplot(1,3,3)
(tmp_xgcm_isosurfaces.sel(tos_bin=Tmax) - tmp_xhistogram_isosurfaces.sel(tos_bin=Tmax).values).plot(vmin=-1.e-5, vmax=1.e-5, cmap="RdBu")
plt.ylim(-10, 15)
plt.xlim(-290, -280)
plt.title("Zooming in on difference pixels");

Takeaways from benchmarking analysis

Assuming these results scale similarly for larger calculations, these results suggest that xhistogram should be the default method for the area-integrated integrate_transformations method of xwmt.WaterMassTransformations, while xgcm should be the default method for map_transformations.
