Surface water mass transformation (WMT) analysis of CMIP6 output using xwmt#
This notebook demonstrates how to compute SWMT from scratch, using only the standard ocean surface variables that are typically archived for experiments contributed to the Coupled Model Intercomparison Project Phase 6 (CMIP6) archive.
Import packages#
[1]:
import numpy as np
import pandas as pd
import xarray as xr
import xgcm
import xwmt
import xbudget
import os
# Optional (loading to memory and plotting)
from dask.diagnostics import ProgressBar
import matplotlib.pyplot as plt
import calendar
import warnings
[2]:
print(
'numpy version',np.__version__, '\nxarray version',xr.__version__,
'\nxgcm version',xgcm.__version__, '\nxbudget version',xbudget.__version__,
'\nxwmt version',xwmt.__version__,)
numpy version 2.4.2
xarray version 2026.2.0
xgcm version 0.9.0
xbudget version 0.6.2
xwmt version 0.2.0
Loading a CMIP6 dataset#
Update rootdir with your own dataset’s path. All relevant variables will be loaded into ds and the (static) grid data will be loaded into a separate dataset. Note that the time period (tprd) is '201001-201412' such that only the last five years of the CM4 historical run are used. In order to include more years, you can use wildcard * for tprd instead.
[3]:
rootdir = '/data_cmip6/CMIP6' # rootdir on GFDL PP/AN
activity_id = 'CMIP'
institution_id = 'NOAA-GFDL'
source_id = 'GFDL-CM4'
experiment_id = 'historical'
member_id = 'r1i1p1f1'
table_id = 'Omon'
grid_label = 'gn'
version = 'v20180701'
tprd = '201001-201412'
#tprd = '*'
ncdir = os.path.join(rootdir,activity_id,institution_id,source_id,experiment_id,member_id,table_id)
[4]:
variables = [
'tos', # surface temperature
'sos', # surface salinity
'hfds', # surface heat flux
'sfdsi', # surface salinity flux (e.g. brine rejection)
'wfo', # surface freshwater flux
]
chunks = {'time':1, 'x':-1, 'y':-1, 'xh':-1, 'yh':-1}
ds = xr.Dataset()
for var in variables:
filepath = os.path.join(ncdir,var,grid_label,version)
filename = '_'.join([var,table_id,source_id,experiment_id,member_id,grid_label,tprd])+'.nc'
if os.path.isdir(filepath):
print('Loading',filename)
ds[var] = xr.open_mfdataset(filepath+'/'+filename, decode_times=True, chunks=chunks)[var]
else:
print('Path for',var,'does not exist. Skipping.')
Loading tos_Omon_GFDL-CM4_historical_r1i1p1f1_gn_201001-201412.nc
Loading sos_Omon_GFDL-CM4_historical_r1i1p1f1_gn_201001-201412.nc
Loading hfds_Omon_GFDL-CM4_historical_r1i1p1f1_gn_201001-201412.nc
Path for sfdsi does not exist. Skipping.
Loading wfo_Omon_GFDL-CM4_historical_r1i1p1f1_gn_201001-201412.nc
[5]:
grid_ds = []
for var in ['areacello','deptho','basin']:
filepath = os.path.join(ncdir.replace(table_id,'Ofx'),var,grid_label,version)
filename = '_'.join([var,'Ofx',source_id,experiment_id,member_id,grid_label])+'.nc'
if os.path.isdir(filepath):
print('Loading',filename)
grid_ds.append(xr.open_mfdataset(filepath+'/'+filename, decode_times=True, chunks=chunks))
else:
print('Path for',var,'does not exist. Skipping.')
Loading areacello_Ofx_GFDL-CM4_historical_r1i1p1f1_gn.nc
Loading deptho_Ofx_GFDL-CM4_historical_r1i1p1f1_gn.nc
Loading basin_Ofx_GFDL-CM4_historical_r1i1p1f1_gn.nc
[6]:
ds = xr.merge([ds, xr.merge(grid_ds[1:], compat="override")], compat="override")
# Area needs to be loaded seperately after renaming MOM6-specific dimension names (xh, yh)
ds['areacello'] = grid_ds[0].areacello.rename({'xh': 'x', 'yh': 'y'})
[7]:
# Add core coordinates of ocean_grid to ds
ds = ds.assign_coords({
"areacello": xr.DataArray(ds["areacello"].values, dims=('y', 'x',)), # Required for area-integration
"lon": xr.DataArray(ds["lon"].values, dims=('y', 'x',)), # Required for calculating density if not already provided!
"lat": xr.DataArray(ds["lat"].values, dims=('y', 'x',)), # Required for calculating density if not already provided!
})
# xgcm grid for dataset
coords = {
'X': {'center': 'x',},
'Y': {'center': 'y',},
}
metrics = {
('X','Y'): "areacello", # Required for area-integration
}
grid = xgcm.Grid(ds, coords=coords, metrics=metrics, boundary={"X":"periodic", "Y":"extend"}, autoparse_metadata=False)

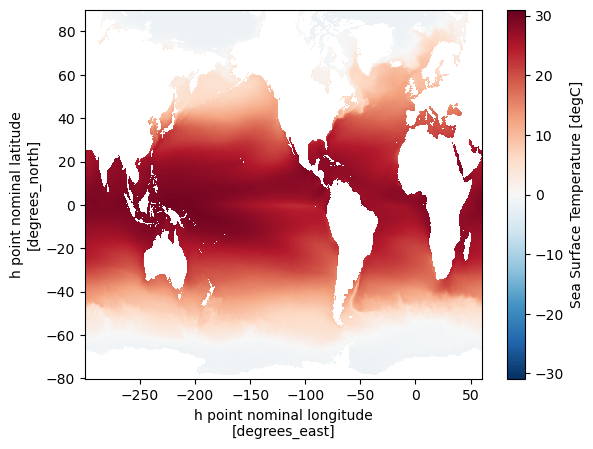

Example plot of surface temperature#
[8]:
ds['tos'].mean('time').plot();

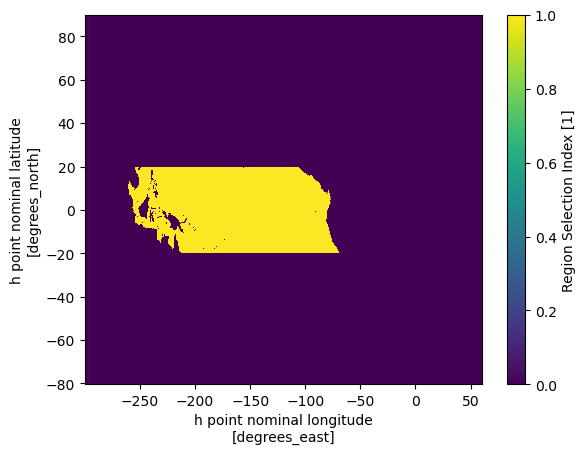

Specify mask to apply for SWMT calculation#
[9]:
basin_name = 'pacific_tropc' # global, atlantic, indian, pacific, southern, arctic,
# atlantic_subpN, pacific_tropc
bidx = [item.split('_')[0] for item in ds.basin.flag_meanings.split(' ')].index(basin_name.split('_')[0])
if basin_name=='global':
mask = xr.where(ds.basin==bidx,0,1)
else:
mask = ds.basin==bidx
[10]:
if basin_name[-6:]=='_tropc':
mask = mask & (ds["lat"]<=20) & (ds["lat"]>=-20)
if basin_name[-6:]=='_subtN':
mask = mask & (ds["lat"]<=45) & (ds["lat"]>20)
if basin_name[-6:]=='_subpN':
mask = mask & (ds["lat"]>45)
if basin_name[-6:]=='_subtS':
mask = mask & (ds["lat"]>=-45) & (ds["lat"]<-20)
[11]:
mask.plot();
Construct xbudget dictionary#
[12]:
budgets_dict = {
"mass": {},
"heat": {"surface_lambda": "tos"},
"salt": {"surface_lambda": "sos"}
}
[13]:
cp = 3992.
rho_ref = 1035.
budgets_dict['heat']['rhs'] = {
'var': None,
'sum': {
'var': None,
'surface_exchange_flux_nonadvective': {
'var': None,
'product': {
'var': None,
'heat_tendency':'hfds',
'area':'areacello'
}
},
'surface_exchange_flux_advective': {
'var': None,
'product': {
'var': None,
'specific_heat_capacity': cp,
'lambda_mass': 'tos',
'mass_density_tendency': 'wfo',
'area': 'areacello'
}
},
'surface_ocean_flux_advective': {
'var': None,
'product': {
'var': None,
'sign': -1.,
'specific_heat_capacity': cp,
'lambda_mass': 'tos',
'mass_density_tendency': 'wfo',
'area': 'areacello'
}
}
}
}
budgets_dict['salt']['rhs'] = {
'var': None,
'sum': {
'var': None,
'surface_exchange_flux_advective': {
'var': None,
'product': {
'var': None,
'unit_conversion': 0.001,
'lambda_mass': 0.,
'mass_density_tendency': 'wfo',
'area': 'areacello'
}
},
'surface_ocean_flux_advective': {
'var': None,
'product': {
'var': None,
'sign': -1.,
'unit_conversion': 0.001,
'lambda_mass': 'sos',
'mass_density_tendency': 'wfo',
'area': 'areacello'
}
}
}
}
## Reconstruct budget terms using the 2D fields
xbudget.collect_budgets(grid._ds, budgets_dict)
simple_budget = xbudget.aggregate(budgets_dict) # aggregate to the root level

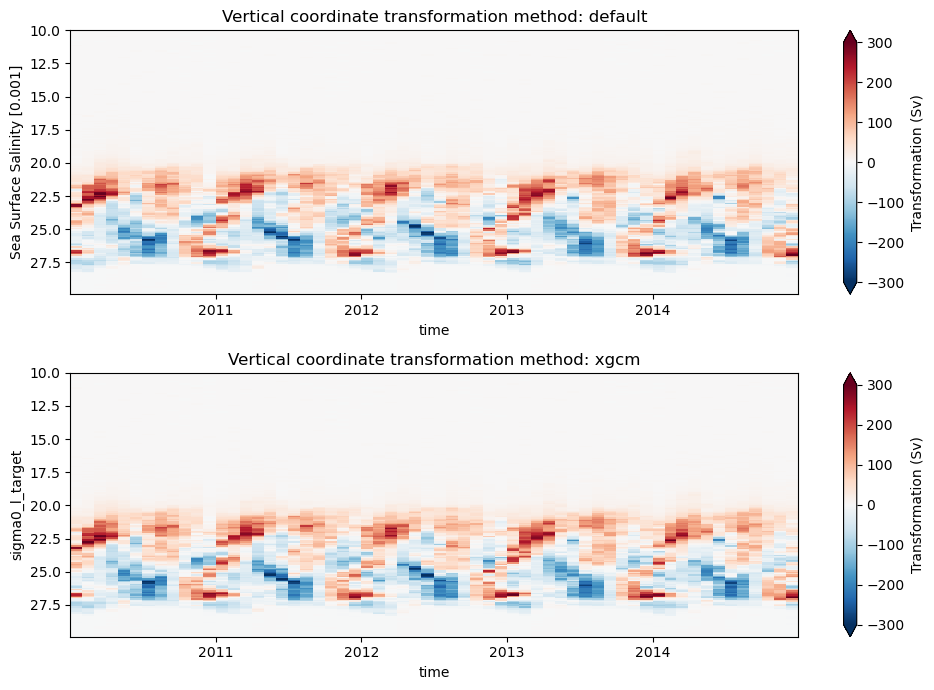

Compute and visualize transformations#
[14]:
# The default method using `xhistogram` for area-integrated WMT calculations but `xgcm` for spatial transformations maps
plt.figure(figsize=(10,7))
for i, method in enumerate(["default", "xgcm"]):
print(f"Method: {method}")
with warnings.catch_warnings():
warnings.simplefilter(action='ignore', category=FutureWarning)
swmt = xwmt.WaterMassTransformations(grid, simple_budget, mask=mask, cp=cp, rho_ref=rho_ref, method=method)
G = swmt.integrate_transformations("sigma0", bins=np.arange(10, 30, 0.1))
with ProgressBar():
G['surface_exchange_flux_nonadvective'].load()
G['surface_exchange_flux_advective'].load()
G['surface_ocean_flux_advective'].load()
ax = plt.subplot(2,1,i+1)
((G['surface_exchange_flux_nonadvective'] +
G['surface_exchange_flux_advective'] +
G['surface_ocean_flux_advective']
)/rho_ref*1.e-6).T.plot(
ax=ax,cmap='RdBu_r',vmin=-300,vmax=300,yincrease=False,
cbar_kwargs={'label': 'Transformation (Sv)'}
);
plt.title(f"Vertical coordinate transformation method: {method}")
plt.tight_layout()
Method: default
[########################################] | 100% Completed | 5.24 sms
[########################################] | 100% Completed | 6.16 sms
[########################################] | 100% Completed | 5.51 sms
Method: xgcm
/work/hfd/.conda/envs/docs_env_xwmt/lib/python3.12/site-packages/xgcm/transform.py:491: UserWarning: The `target data` input is not located on the cell bounds. This method will continue with linear interpolation with repeated boundary values. For most accurate results provide values on cell bounds.
warnings.warn(
/work/hfd/.conda/envs/docs_env_xwmt/lib/python3.12/site-packages/xgcm/transform.py:491: UserWarning: The `target data` input is not located on the cell bounds. This method will continue with linear interpolation with repeated boundary values. For most accurate results provide values on cell bounds.
warnings.warn(
/work/hfd/.conda/envs/docs_env_xwmt/lib/python3.12/site-packages/xgcm/transform.py:491: UserWarning: The `target data` input is not located on the cell bounds. This method will continue with linear interpolation with repeated boundary values. For most accurate results provide values on cell bounds.
warnings.warn(
/work/hfd/.conda/envs/docs_env_xwmt/lib/python3.12/site-packages/xgcm/transform.py:491: UserWarning: The `target data` input is not located on the cell bounds. This method will continue with linear interpolation with repeated boundary values. For most accurate results provide values on cell bounds.
warnings.warn(
[ ] | 0% Completed | 141.13 ms
/work/hfd/.conda/envs/docs_env_xwmt/lib/python3.12/site-packages/xgcm/transform.py:491: UserWarning: The `target data` input is not located on the cell bounds. This method will continue with linear interpolation with repeated boundary values. For most accurate results provide values on cell bounds.
warnings.warn(
[########################################] | 100% Completed | 55.65 s
[########################################] | 100% Completed | 111.54 s
[########################################] | 100% Completed | 87.19 s
[ ]:
